Sonex* Forward Fuselage 1

*This web site is NOT owned or managed by Sonex, Ltd.. Sonex, Ltd. is not responsible for the content unless explicitly stated. See Disclaimer.

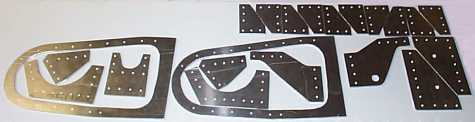

0.090" Forward fuselage details. Wing opening (flap pushrod?) doublers ("D" shapes) were cut using jigsaw with metal cutting blade. Parts shown inside doublers were laid out & cut approximately as shown from the scrap inside the "D". 10/26/99

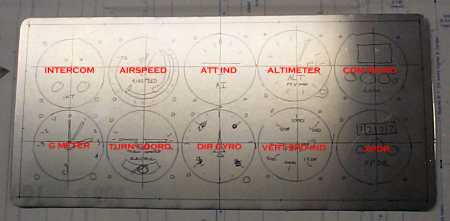

Playing with the panel. I think there might be a 2.25" AI as an electric backup for very highly equipped aircraft, but it probably costs as much as my entire airframe. The 2.25" XPDR is a remote-mount by Becker (intended for gliders). I will probably do the 2.25" intercom & com radio, but no DG, AI, or TC. Don't know about the XPDR, but it would be nice not to hang anything below the panel. A g-meter mounted as shown would not read true due to the panel not being vertical. So if I include one, it will need to either be recalibrated or vertically mounted. 10/26/99

Using hand-held jigsaw with metal cutting blade to take 1x1x1/8 angle to length. This is why you want your table top to overhang the table framing. 10/29/99

Wrapping cut down around the angle (different size angle). 10/29/99

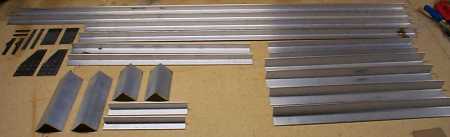

Most of the cockpit area angle stock blanks & some misc. details. (2.5x2.5x1/8 & some 1x1x1/8 not included) 10/29/99

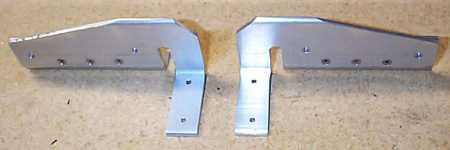

Cut these using just the jigsaw - no bandsaw. Also feature the first countersunk rivets I've done in this project. (See Tools for microstop countersink) 10/29/99

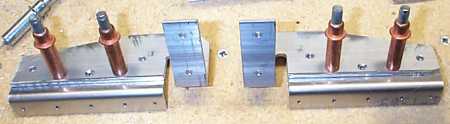

Countersunk rivets installed. 10/29/99

Doing the parts from drawing SNX-F14 has been taking a lot of time. There are a LOT of parts in there. (Flap handle on right from different drawing.) 10/31/99
